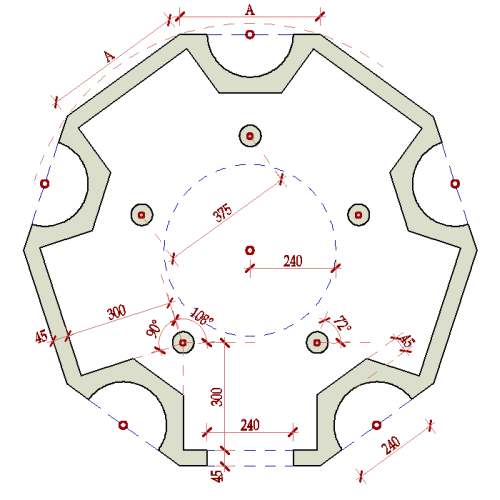

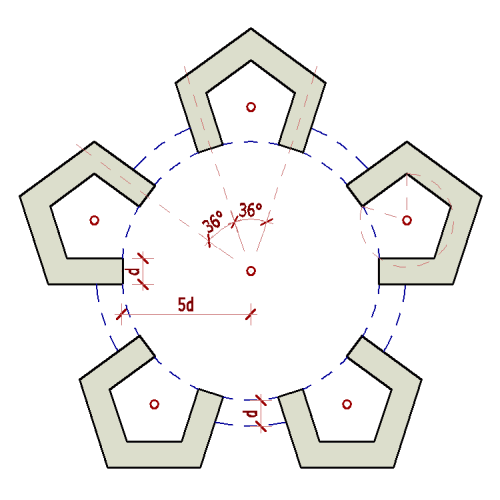

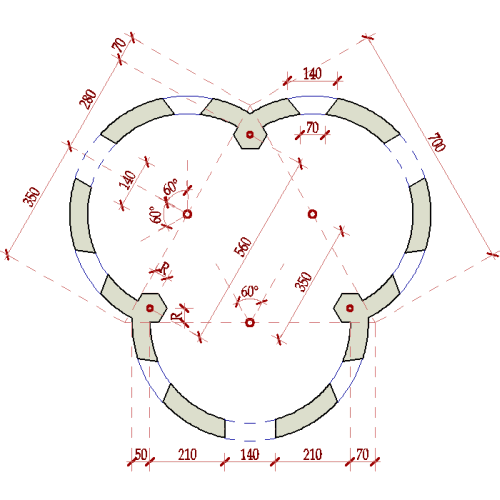

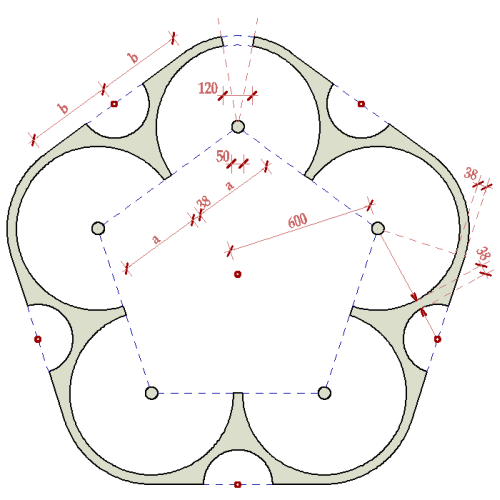

  Examples of previous 2D tests.

•  Create the necessary layers, define at least one block, and create a Layout containing the plan in a scale of 1:100!


Plotting

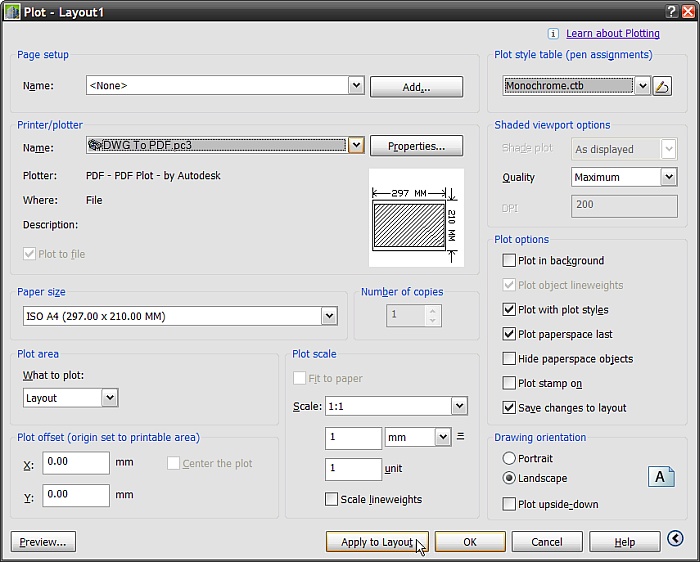

Create a greyscale "digital plot" (a PDF file) using a mono­chrome pen assignment table!

Use only standard colors in the drawing: the walls should be red (Color 1), the fills should be grey (Color 8, 9, 251-254).
